Mud desander (Drilling fluid desander) is the secondary stage of drilling fluid solids control system , also an important equipment that stable, adjust drilling fluid technology index.
According to different size of cyclone diameter, divided into cyclone desander and cyclone desilter.Generally more than 8 "combination of cyclone called desander, commonly used are 8", 10 ", 12 "cyclone, it mainly used for separating Solid Particle size of 47-76 μm of drilling fluid. According to the size of the customer request processing, choose several groups of cyclone desander.
The desander is suitable for ZJ70 ZJ50 and ZJ40 all kinds of drilling rig, which can be used with closed loop drilling fluid systems.

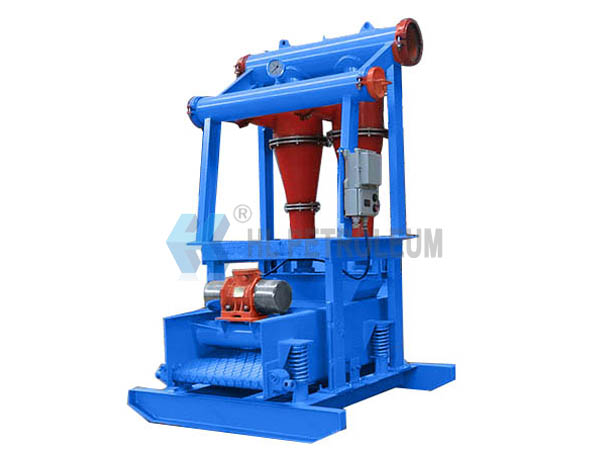

Desander Pictures
Desander Technical Parameters
Model | HCS200×2S | HCS250×2S | HCS300×2S |
Capacity (m3/h) | 100 | 200 | 240 |
Cyclone dia. | 200mm（8″） | 250mm（10″） | 300mm（12″） |
Cyclone no. | 2 | 2 | 2 |
Motor power（KW） | 0.4 | 0.4 | 0.4 |
Separation size(μm) | 10 | 60 | 80 |
Screen mesh | 150 mesh | 120 mesh | 100 mesh |
Work pressure | 0.25~0.45MPa | ||
Dimension(mm) | 1500×1200×1800 | 1500×1300×2000 | 1500×1500×2000 |
Weight（KG） | 750 | 800 | 1100 |
