Screw conveyors are often used to transport cuttings and accompanying fluids, collect cuttings (usually relatively dry oil-based cuttings) from various solids control equipment, and transport them to the area where the loaded cuttings box is installed on the well site.

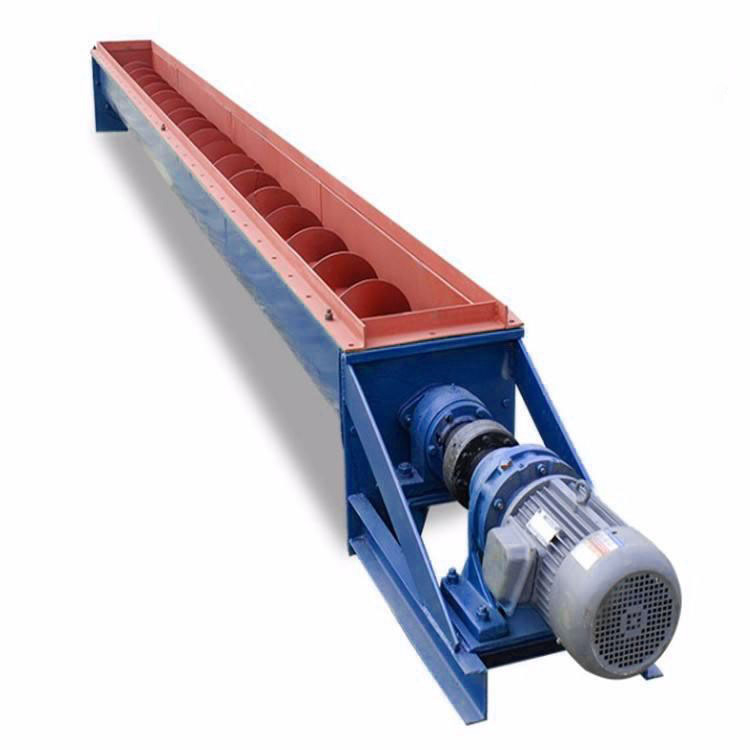

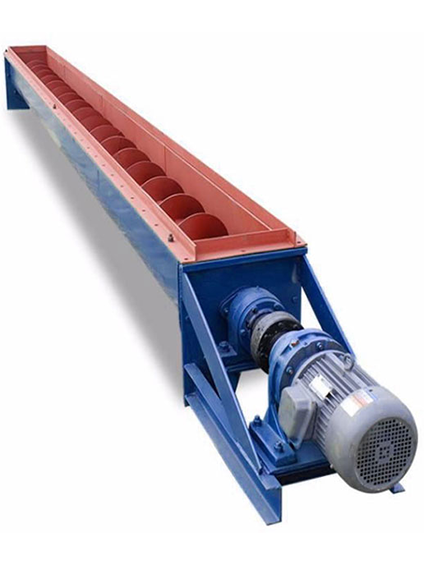

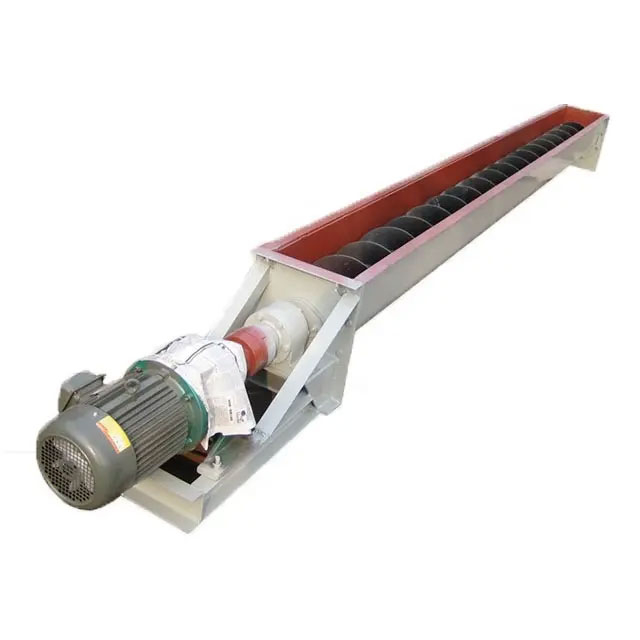

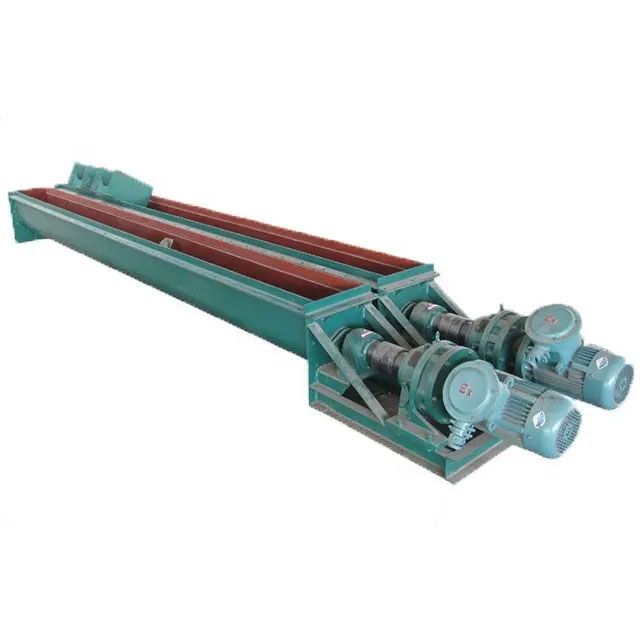

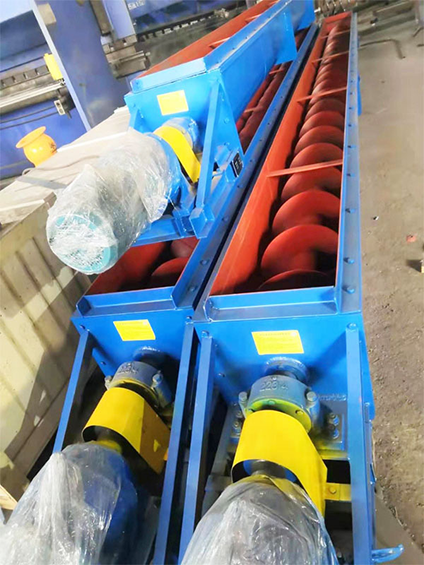

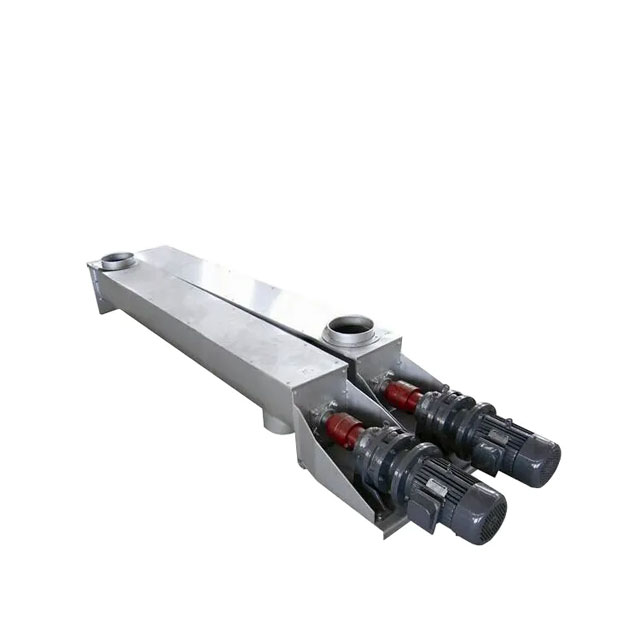

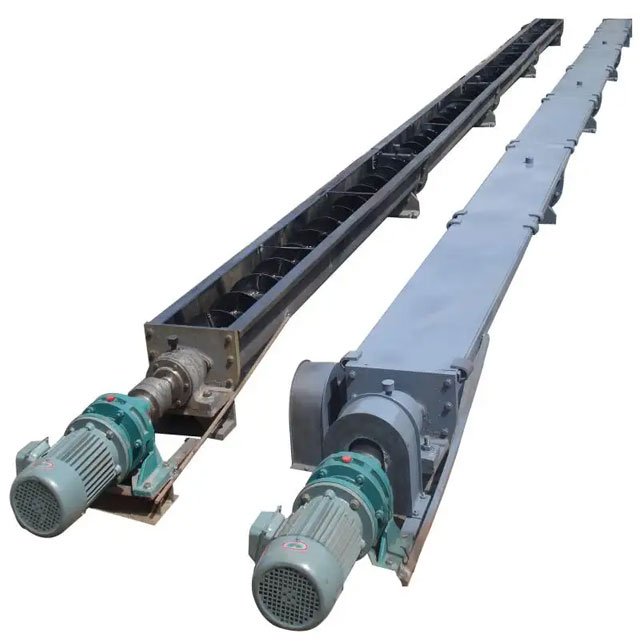

Screw Conveyor Pictures
Screw Conveyor Parameters
| Model | Diameter | Length | Nomind main shaft speed | Conveying Capaciy | Motor Power |
| LS250 | 250mm | 6、9、12、15 | 88 | 10 | 3/4/5.5/7.5 |
| 65 | 7.5 | 2.2/3/4/5.5 | |||
| 52 | 6 | 2.2/3/4/55 | |||
| LS315 | 315mm | 6、9、12、15 | 65 | 15 | 5.5/7.5/11 |
| 52 | 12 | 3/5.5/7.5 | |||
| 43 | 10 | 3/5.5/7.5 | |||
| LS400 | 400mm | 7.2、10.8、14.4 | 65 | 27.5 | 7.5/11/15 |
| 52 | 22 | 7.5/11/15 | |||
| 43 | 18 | 5.5/7.5/11 |
Screw Conveyor Features
1.The head and tail bearings are arranged outside the shell, the suspension shaft adopts rolling and sliding bearing interchangeable structure, and is equipped with dust-proof sealing device, the sealing parts have good sealing performance, strong wear resistance, small resistance and long service life;
2.The discharge end is equipped with a cleaning device, the whole machine has low noise, strong adaptability, and convenient operation and maintenance;
3.The conveying trough is equipped with a steam heating device, which can be used in the working environment temperature of -40~60°C;
4.The conveying trough is installed on a special base, which can realize the conveying operation at a certain height of the space. It can also be installed in combination with two sets. The ... level conveyor can rotate on the horizontal plane, adjust and expand the conveying range, and can reach a long distance. The purpose of distance delivery.
